Wall Mount
Racks DS Series
Optimized for Accessibility and Cooling in Limited Spaces
product
Overview
MRS offers a versatile range of double section wall mount racks to suit small secured network requirements. Wall mount racks are the ideal solution where the floor space is a limitation, typical networking equipment like rotors, switches, patch panels, etc. are well accommodated in the rack. MRS double section wall mount racks are fabricated out of C.R.C.A Steel Sheet CNC programmed, punched, bent, welded and powder coated with the highest quality under confirming Industrial, ISO 9001-2015 and 14001-2015 Standards. Manufacturing and qualify management systems to ensure the highest quality product.

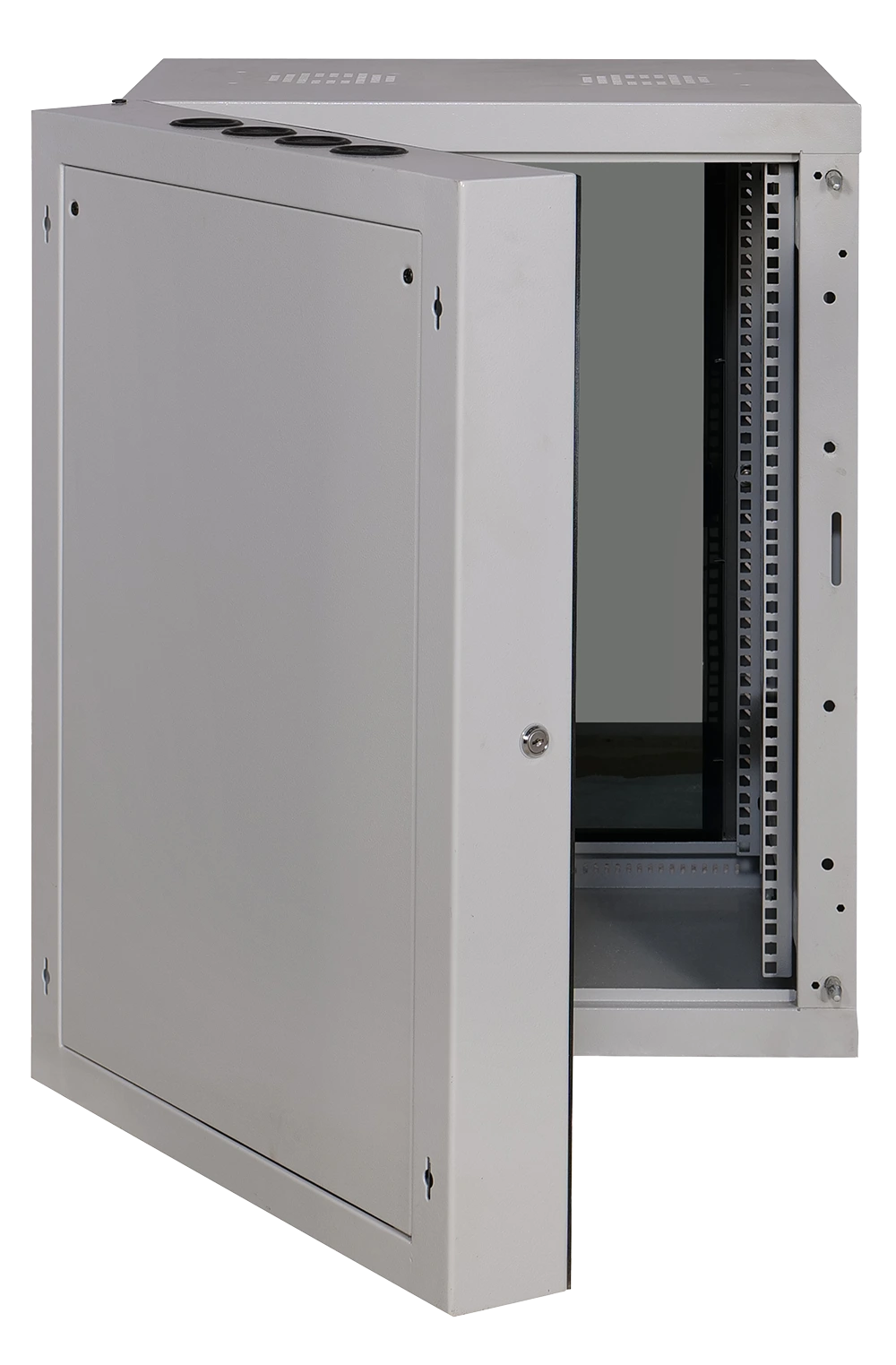

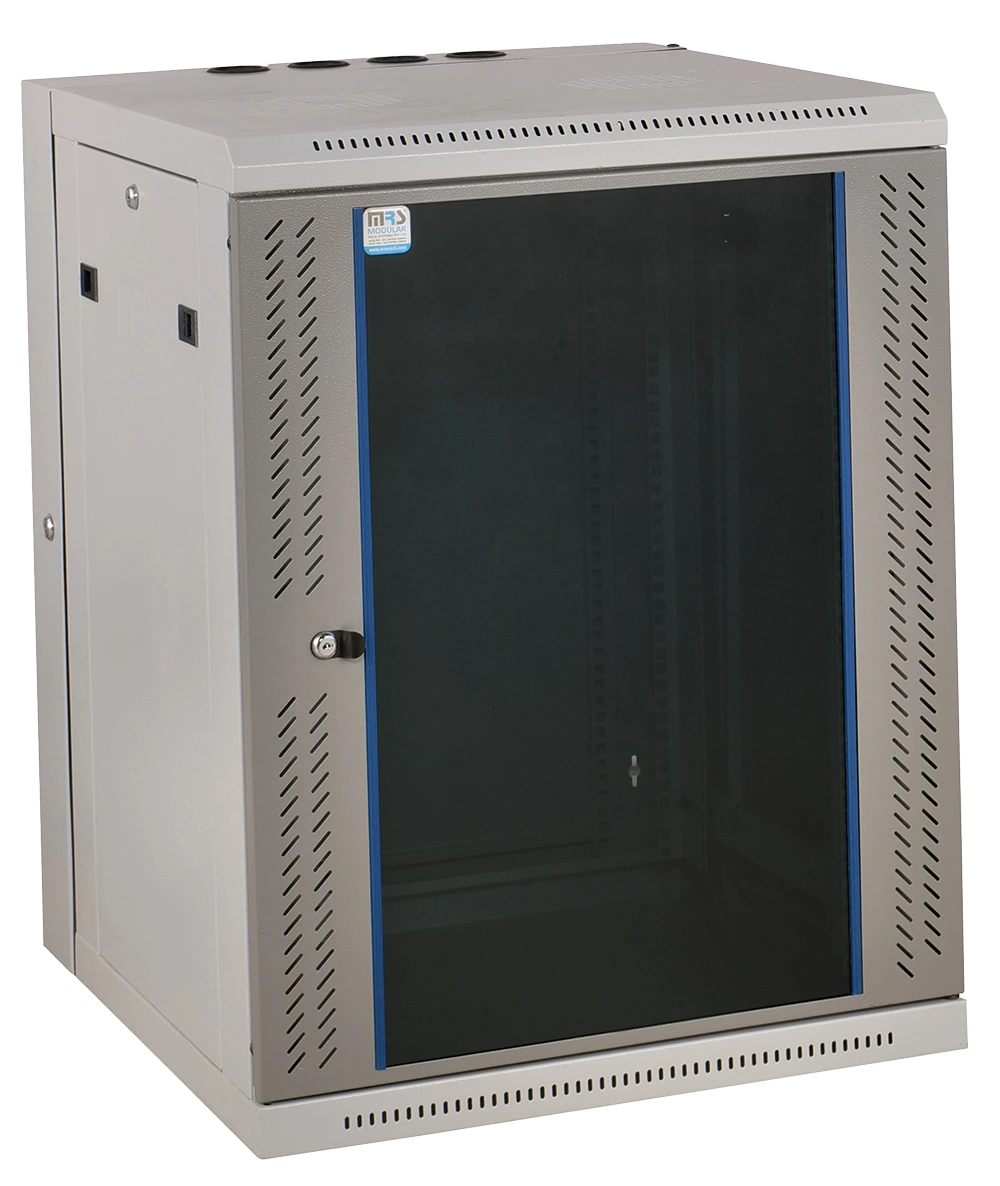

MRS double section wall mount racks are welded frame integrated with side panel / removable side panel, vented top cover with 2 fans and cable entry provision, bottom cover with ventilation and cable entry provision associated with front toughened glass door along with lock and key and provision to mount on the wall. MRS double section wall mount racks are available from 6 U to 15 U variants with 400 & 500mm deep configuration.
Key
Features
Conforms to DIN 41494 OR equivalent standard.
Adjustable 19” equipment mounting vertical provides the better mounting flexibility, and maximizes the usable mounting space.
Depth adjustable mounting slots.
Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry.
Top and bottom panel with ventilation and cable entry facility.
Provision to mount the cooling fans on the top panel.
Powder coated finish with Seven Tank pretreatment process meeting all industry standards.
Grounding and Bonding Options. 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
Compatible
Accessories
- Power Distribution Units
- Cooling Fans
- Cantilever Shelf
- Cable Organizers
- Grounding Kit
Item Type
- Rack Standard
- Construction
- Front Door
- Basic Frame
- Equipment Mounting
- Mounting Angle
- Standard Finish
- Top and Bottom Cover
- Standard Color
- Static Load
Description
- Conforms to DIN 41494 or equivalent standard
- Welded
- Lockable Toughended Glass Door
- Steel
- DIN Standard 10mm Sq.Slots / Direct M6 Tap
- 19” Mounting angle made of formed steel
- Powder Coated
- Welded to Frame, Vented and Cable entry exit cut outs
- Grey or Black
- 40 kgs
| Part Code | Total Height in mm (H) | Usable Height (H) | Total width in mm (W) | Usable width in inches (w) | Total Depth in mm (D) | Usable Depth in mm (d) |
|---|---|---|---|---|---|---|
| MRS-DS-5540-04 | 258 | 04U | 550 | 19" | 400+100 | 350 |
| MRS-DS-5540-06 | 347 | 06U | 550 | 19" | 400+100 | 350 |
| MRS-DS-5540-09 | 480 | 09U | 550 | 19" | 400+100 | 350 |
| MRS-DS-5540-12 | 613 | 12U | 550 | 19" | 400+100 | 350 |
| MRS-DS-5540-15 | 747 | 15U | 550 | 19" | 400+100 | 350 |
| MRS-DS-5550-04 | 258 | 04U | 550 | 19" | 500+100 | 450 |
| MRS-DS-5550-06 | 347 | 06U | 550 | 19" | 500+100 | 450 |
| MRS-DS-5550-09 | 480 | 09U | 550 | 19" | 500+100 | 450 |
| MRS-DS-5550-12 | 613 | 12U | 550 | 19" | 500+100 | 450 |
| MRS-DS-5550-15U | 747 | 15U | 550 | 19" | 500+100 | 450 |
1U = 44.45 mm *Rear Section Depth = 100mm |
||||||
